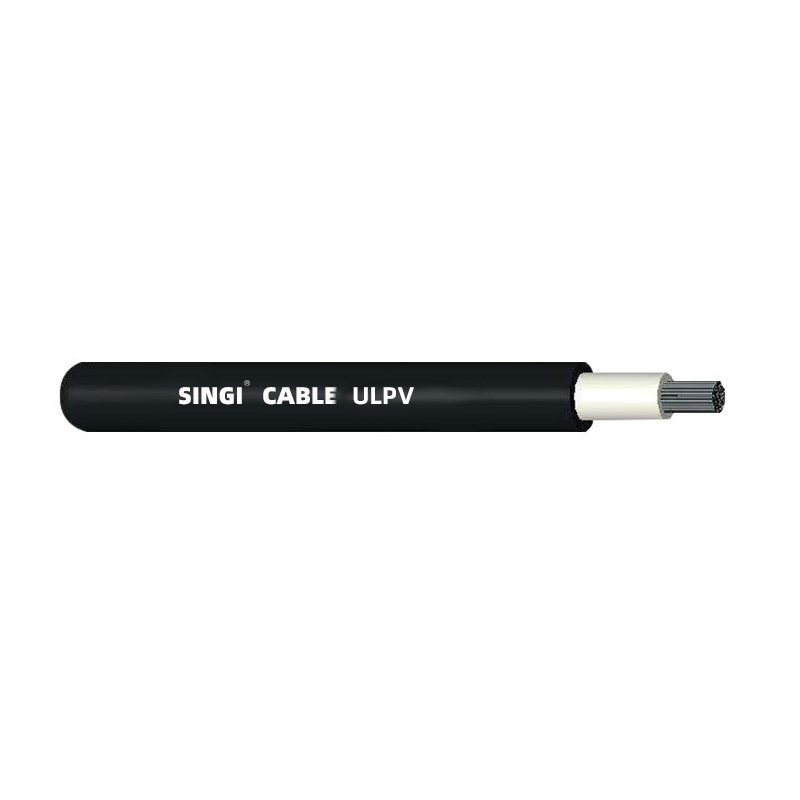

Product Structure |
|
|
Conductor |
Stranded annealed soft copper wire |
|
Insulation & |
125°C irradiated cross-linked low smoke halogen-free polyolefin materials |
|
Core Structure |
Layered structure |
|
Jacket Color |
Black |
|
Service Life |
Not less than 25 years |
|
Application Standards |
UL4703 |
|
Technical parameters |
|
|
Rated Voltage |
600/1000V AC |
|
Ambient Temperature |
-40℃~+90℃ |
|
Flame Retardant |
Self-extinguishing according to UL1581，VW-1 |
|
Conductor Operating Temperature |
125° C |
|
Minimum Bending Radius |
4*d(d＜8mm）；6*d(d≥8mm） |
|
Application Scenario |
The products are widely used in photovoltaic power plants, junction boxes, connectors, inverters, micro-inverters, convergence boxes, energy storage and other fields. |
|
Characteristic |
Heat-resistant, cold-resistant, abrasion-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant; high mechanical strength, waterproof, oil-resistant, chemical-resistant; soft, easy to peel off, amount of number of adhesive compatibility. By single vertical combustion |
|
Certification |
UL 4703 ,RoHS |
|
AWG |
Nominal Area |
Conductor Construction |
600V Cable OD.（mm²） |
2000V Cable OD.（mm²） |
MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
|
UL PV 18AWG |
0.823 |
16/0.254 |
4.25 |
5.0 |
23.2 |
|
UL PV 16AWG |
1.31 |
26/0.254 |
4.55 |
5.3 |
14.6 |
|
UL PV 14AWG |
2.08 |
41/0.254 |
4.95 |
5.7 |
8.96 |
|
UL PV 12AWG |
3.31 |
65/0.254 |
5.40 |
6.2 |
5.64 |
|
UL PV 10AWG |
5.261 |
105/0.254 |
6.20 |
6.9 |
3.546 |
|
UL PV 8AWG |
8.367 |
168/0.254 |
7.9 |
8.4 |
2.23 |
