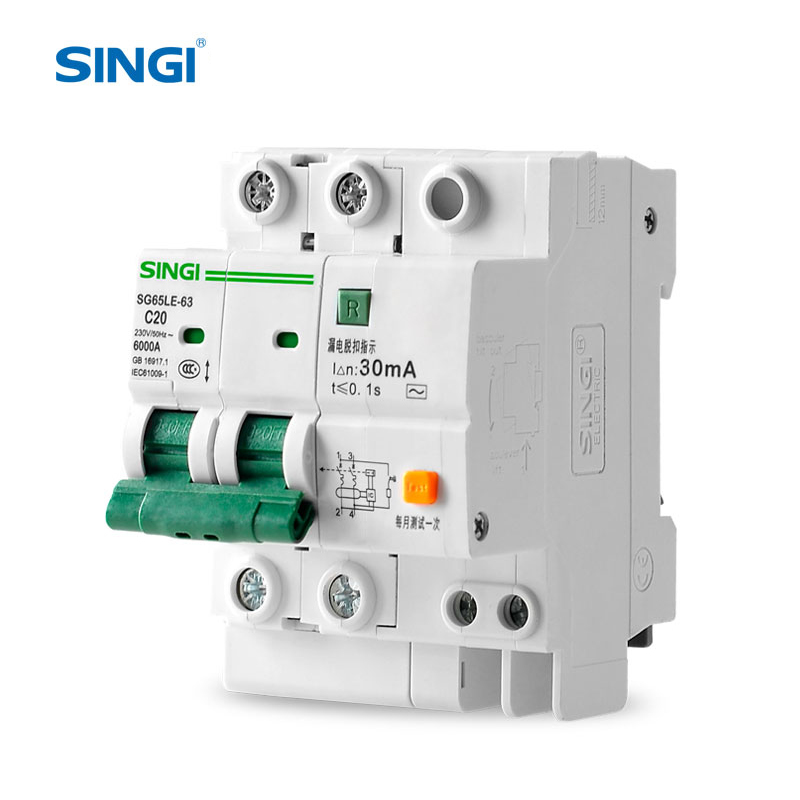

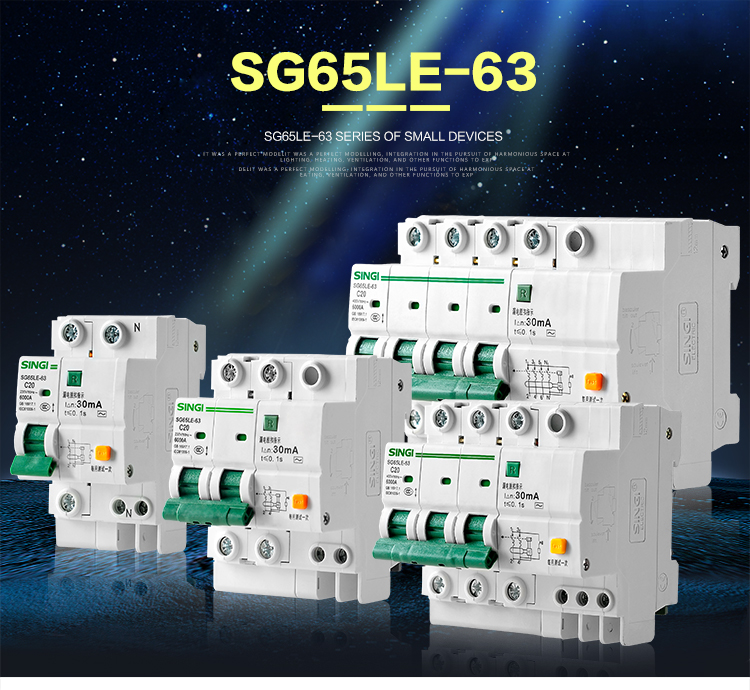

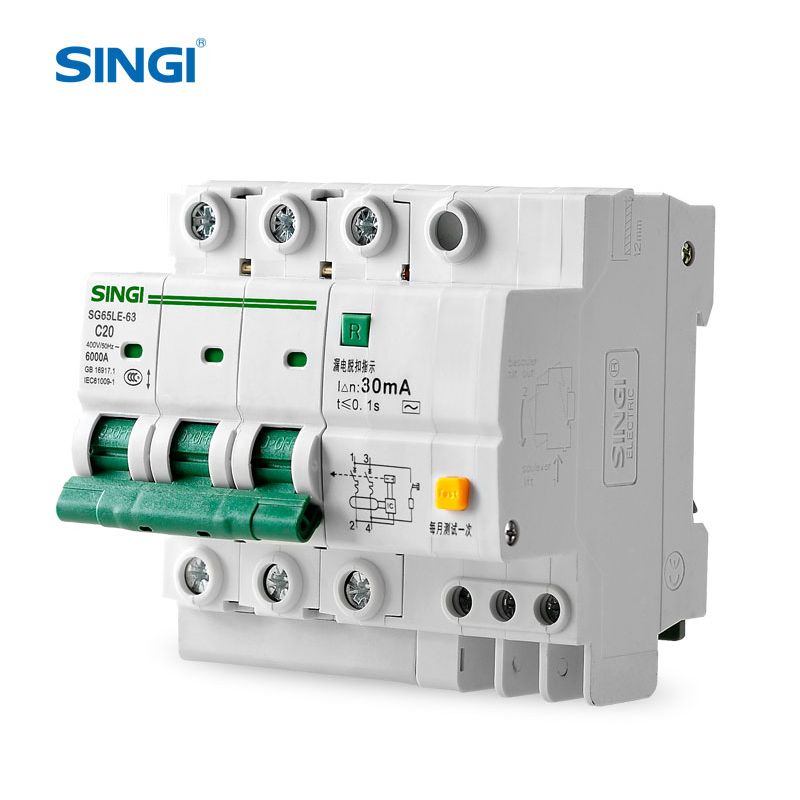

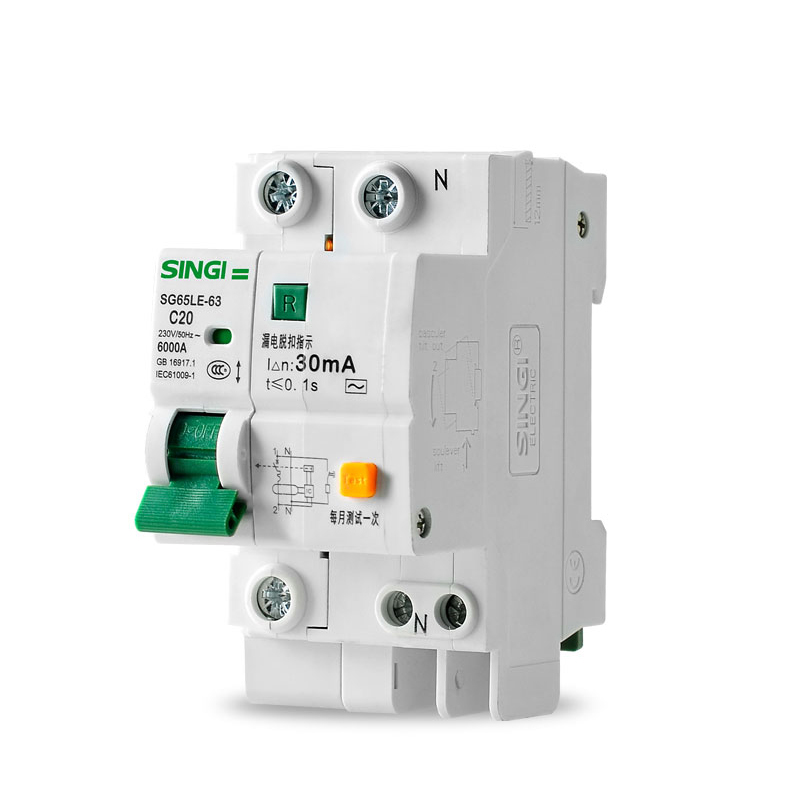

SG65LE-63 (6KA) RCBO

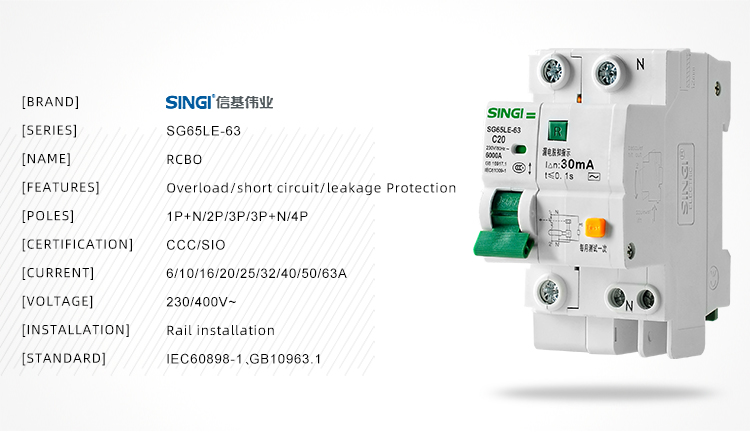

Key Parameters:

· CE/CB/ISO9001/CCC certificates;

· Rated voltage:230/400VAC;

· frequency50/60Hz;

· Rated current:1,3,6,10,16,20,25,32,40,50,63A;

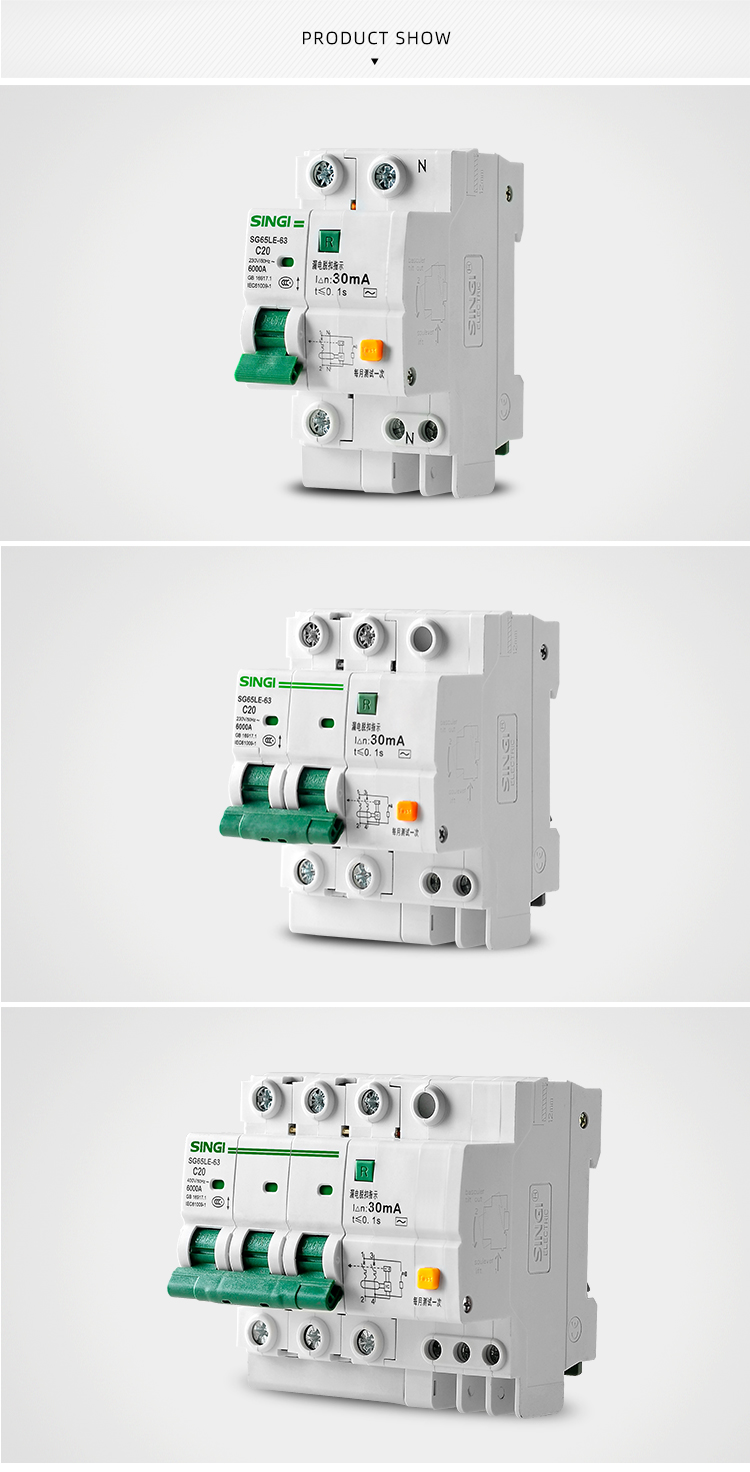

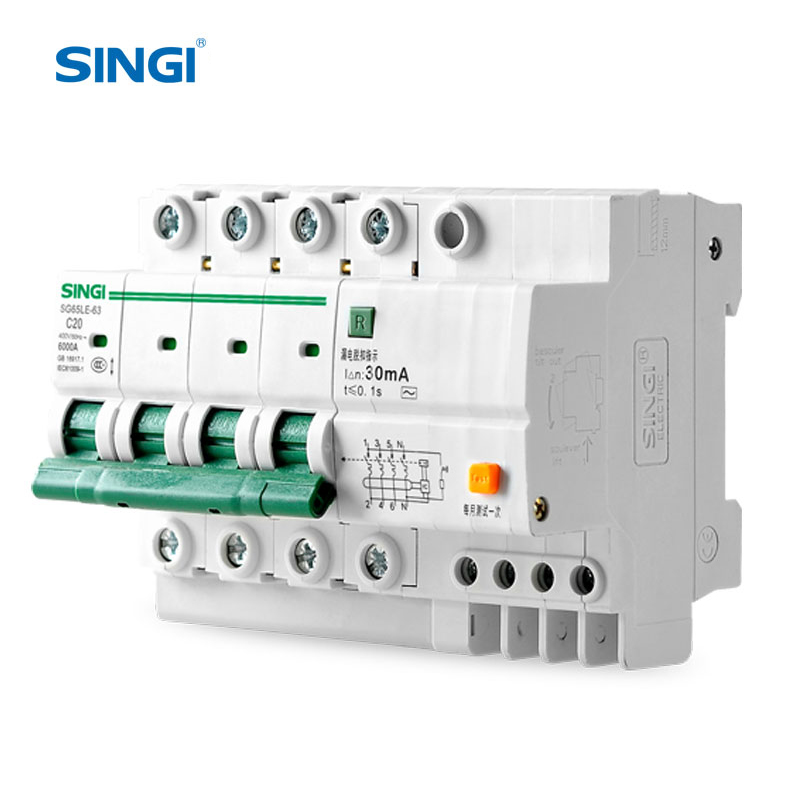

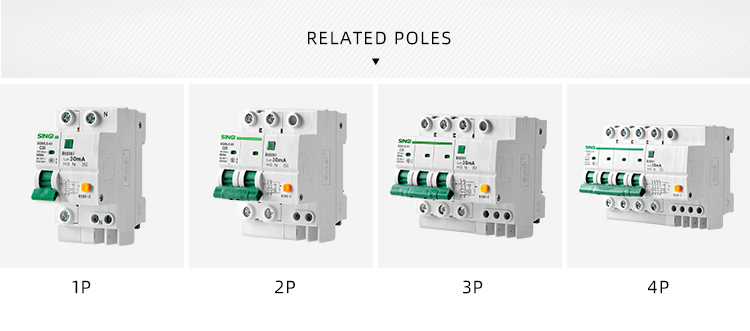

· 1/2/3/4poles optional;

· Mechniacal life:10,000times;

· Flame-redardant:PA66 nylon material;

· Protection degree:IP20;

· With over load/short circuit protection;

· Standard:IEC60898;

· Enduring tem.55°C

· Breaking Capacity:6KA;

· Lighting/Motor protection optional

Application:

SG65LE RCBO is applied to AC 50Hz, single phase 230V, three phases 400V. When someone gets and electric shock or residual current exceeding the default value, RCBO can automatically turn off the power to protect personal safety and prevent equipment from malfunctioning due to residual current. It can also protect the circuit from overload and short circuit or can be used for frequent circuit switching under normal conditions. And additional protection functions such as over voltage, under voltage can be added according to customers' request.

It complies with IEC1009-1. GB16917.1.

Structure

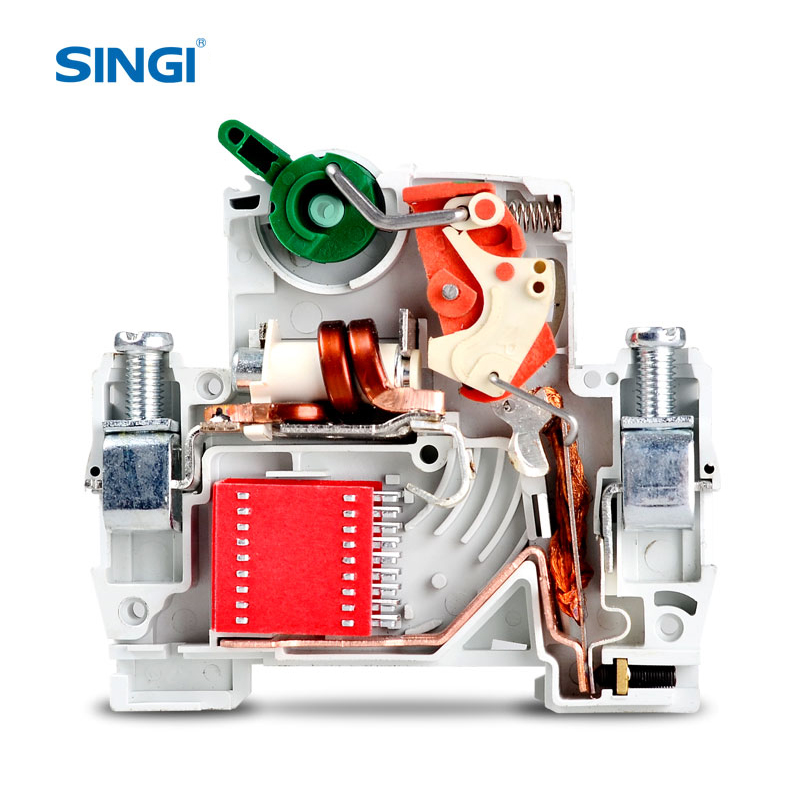

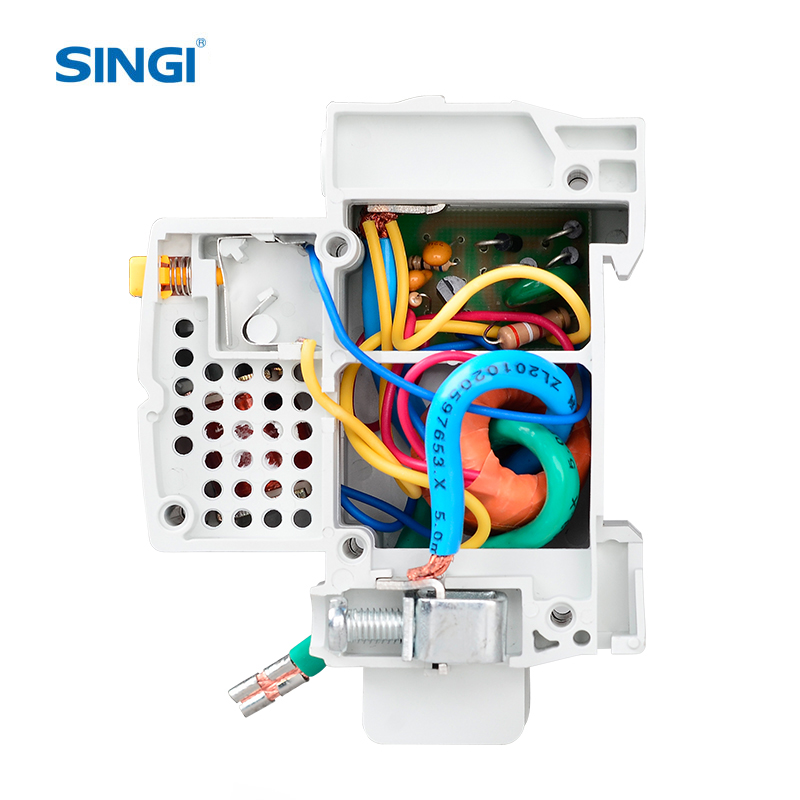

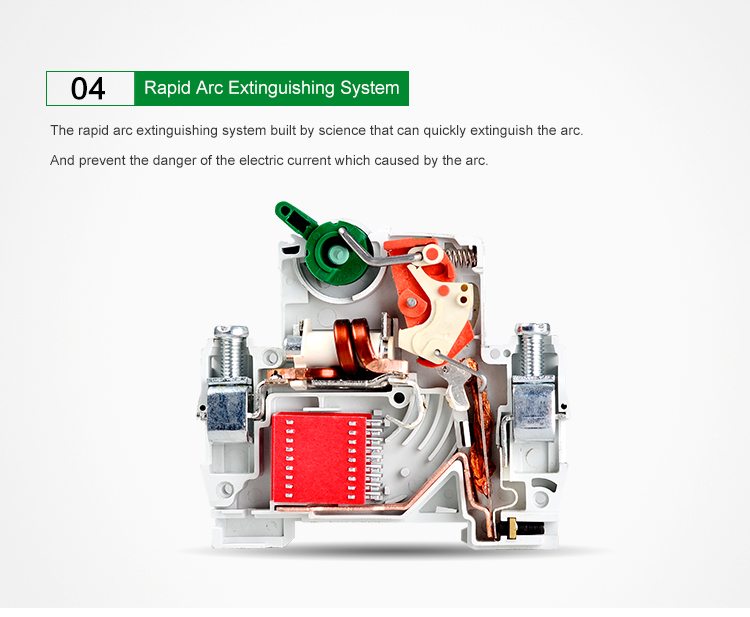

SG65LE-63 series RCBO is composed of SG65-63 high breaking MCB and residual current release. This RCBO is current operating electronic RCBO, the main parts including zero sequence current transformer, electronic panel, current leakage release and the circuit breaker with protection functions of overload, short circuit.

Technical Parameters
