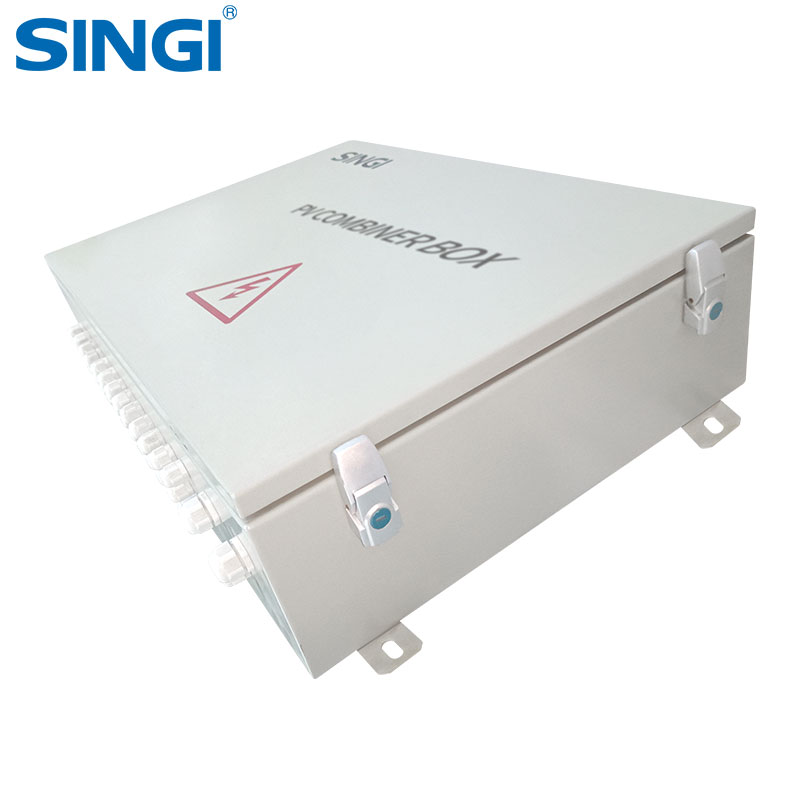

Name: SWHX PV Combiner Box
Brand: Singi Electrical
SKU: 00094
Availability: InStock
Rating: 5 (1 reviews)

We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

English

日本語

Deutsch

Français

Español

Русский

Português

Italiano

한국어

ไทย

Ελληνικά

नहीं।

Home

Products

AC Series

Miniature Circuit Breaker Moulded Case Circuit Breaker Surge Protection Device Fuse WIFI Circuit Breaker AFDD Distribution Box RCBO

DC Series

Miniature Circuit Breaker Isolating Switch Fuse Reclosure SPD

Combiner Box

DC Isolator Box 600V DC Combiner Box 1000V DC Combiner Box AFCI Combiner Box DC+AC Combiner Box AC Combiner Box 1500V DC Combiner Box

Solar System Cable

Grid-Tie Box

Case

Case Example

News

Download

ABOUT US

About Us

Inquiry

English

Home > Combiner Box

Description Factory Video

Description

Type	SWHX-8	SWHX-12	SWHX-16	SWHX-24
Number Of Input Channels	Below 8 circuits	8-12	13-16	17-24
Maximum Input Voltage(V)	DC 1000V
Maximum Output Current(A)	Below 100	100/125/160	160/200	250

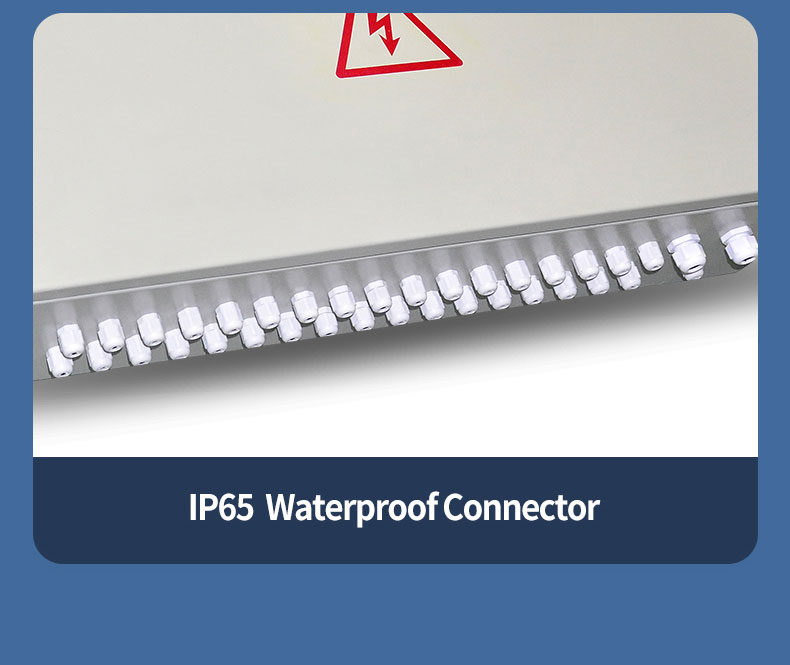

Protection Grade	IP65
Size(WHDmm)	630500180	720500180	800500180	850500200

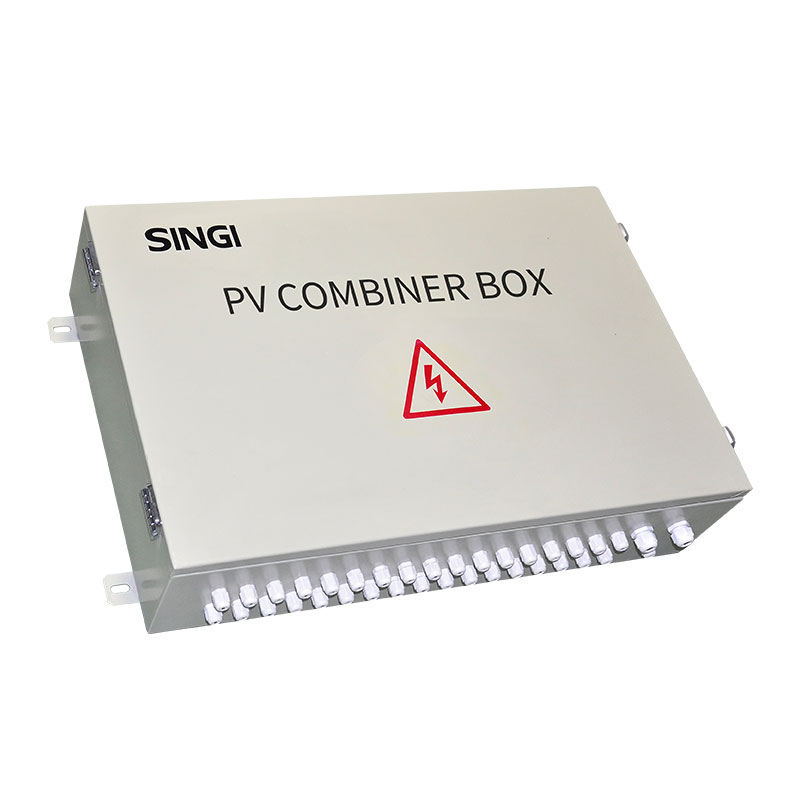

The PV combiner box are suitable for grid-connected and off-grid power generation. The main function is to sink the input of PV cell array at one level, and to provide fast cut-off short-circuit fault protection and lightning protection to avoid damage to PV panels and inverters in case of failure. It is also used to reduce the connection of photovoltaic arrays to the inverter, optimize the system structure, improve reliability and maintainability, and optimize power generation efficiency. The parallel mode has anti-backflow and anti-reverse access functions.

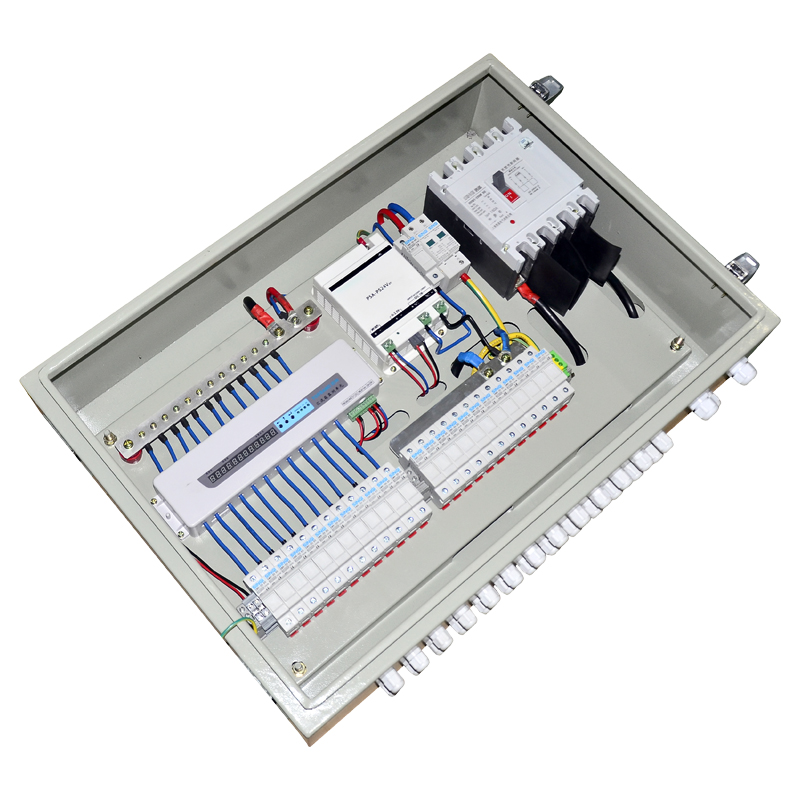

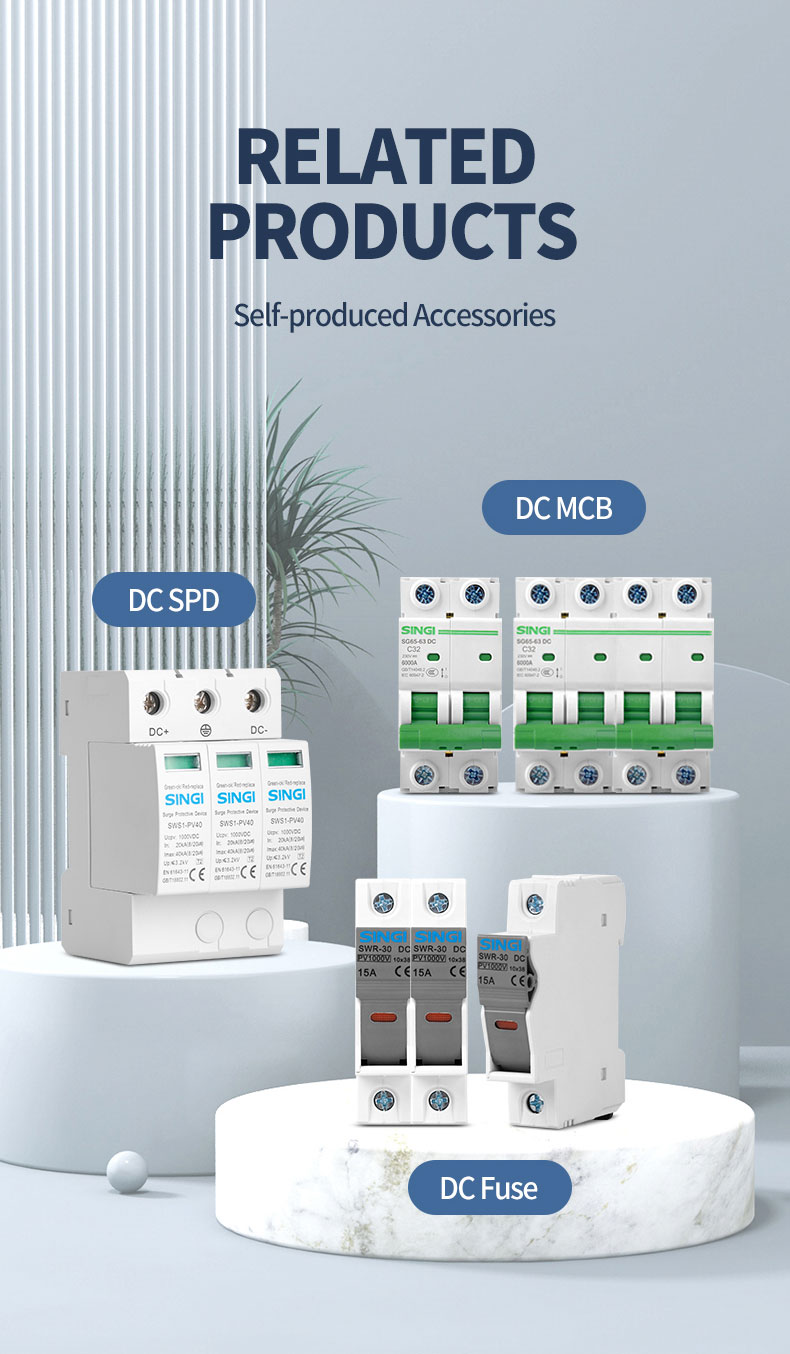

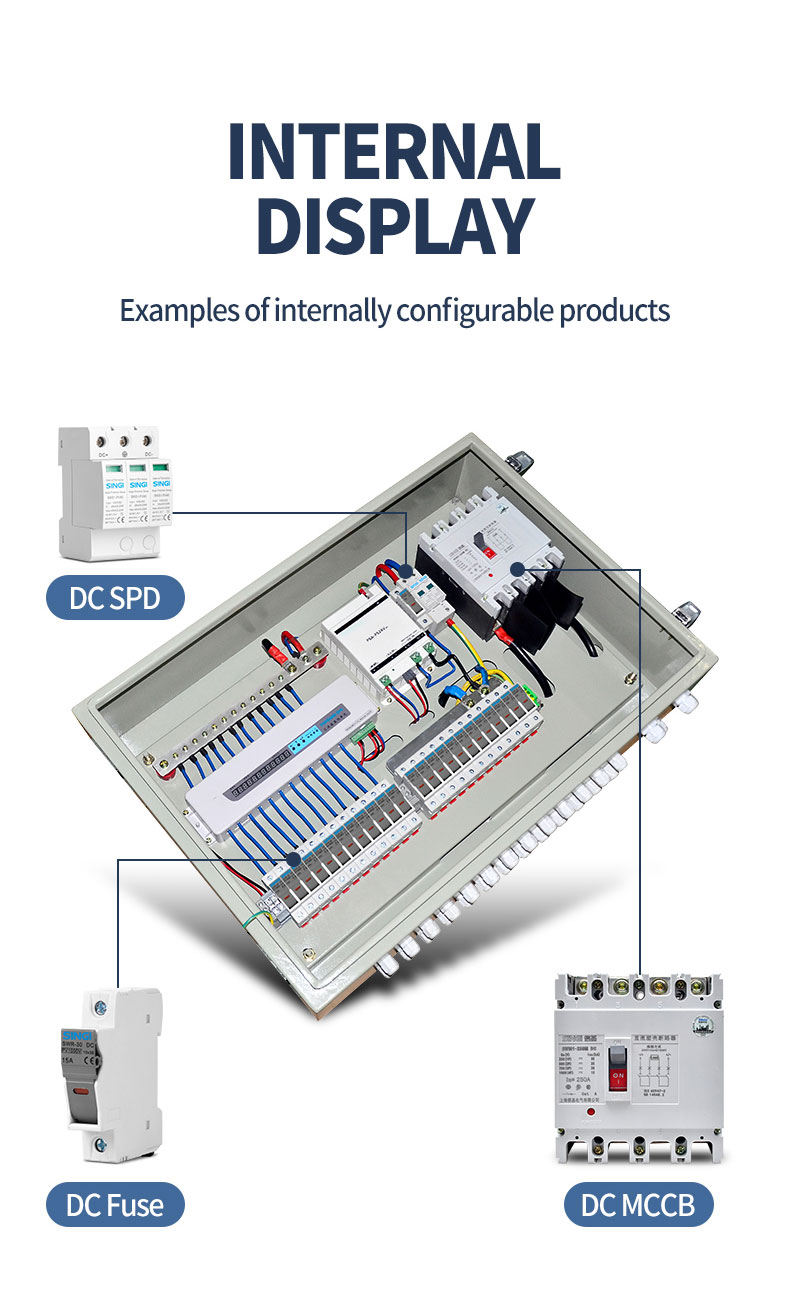

Singi offers a plug & play solution that accommodates overcurrent protection devices, disconnectors and surge protective devices (SPDs) in one solar combiner box. Depending on the application, combiners are equipped with monitoring devices to measure current, voltage and temperature to ensure the availability of the strings and to maximize generation. The string combiner boxes form subsystems that can be standardized according to the number of strings, voltage and rated current.

Welcome to consult.
