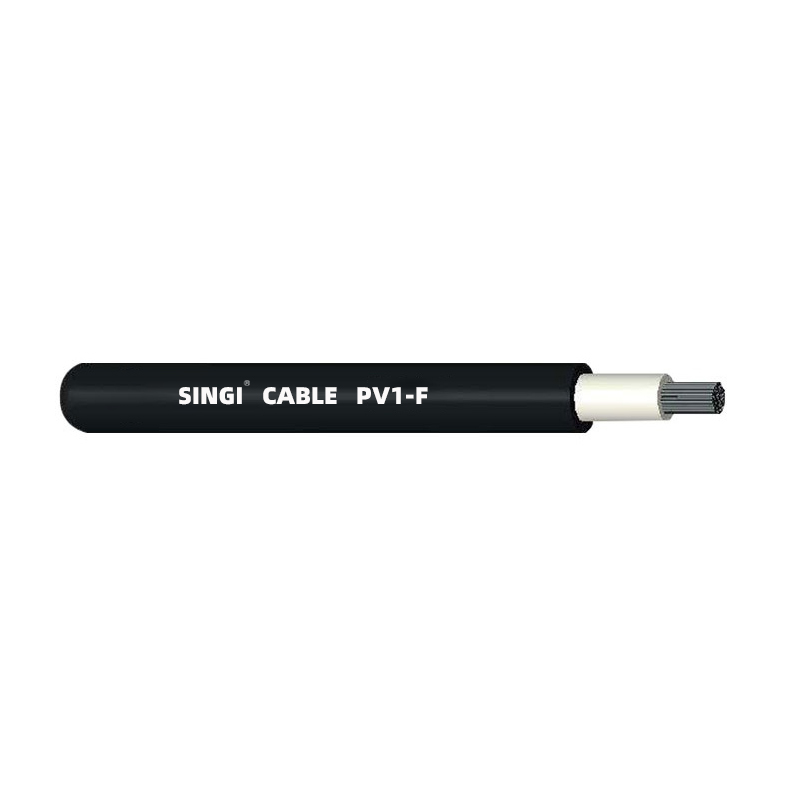

Product Structure |
|
|
Conductor |
Stranded annealed tinned soft copper wire EN 60228 |
|
Insulation & |
125°C irradiated cross-linked low smoke halogen-free polyolefin materials |
|
Core Structure |
Layered structure |
|
Jacket Color |
Black |
|
Service Life |
Not less than 25 years |
|
Application Standards |
2 Pfg 1169/08 |
|
Technical parameters |
|
|
Rated Voltage |
600V/1000V |
|
Test Voltage |
6.5KV AC 50Hz |
|
Ambient Temperature |
-40℃~+90℃ |
|
Flame Retardant |
Self-extinguishing according to IEC 60332-1-2 |
|
Conductor Operating Temperature |
125° C |
|
Minimum Bending Radius |
4*d(d＜8mm）；6*d(d≥8mm） |
|
Application Scenario |
The products are widely used in photovoltaic power plants, junction boxes, connectors, inverters, micro-inverters, convergence boxes, energy storage and other fields. |
|
Characteristic |
Heat-resistant, cold-resistant, abrasion-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant; high mechanical strength, waterproof, oil-resistant, chemical-resistant; soft, easy to peel off, amount of number of adhesive compatibility. By single vertical combustion |
|
Certification |
TUV,RoHS |
|
Type |
Conductor construction |
Conductor stranded OD. (mm) |
Cable OD. （mm²） |
MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
|
PV 1*2.5 |
49/0.245 |
2.0 |
5.4 |
8.21 |
|
PV 1*4.0 |
56/0.295 |
2.5 |
6.0 |
5.09 |
|
PV 1*6.0 |
84/0.295 |
3.1 |
7.05 |
3.39 |
|
PV 2*2.5 |
49/0.245 |
2.0 |
5.4*11.8 |
8.21 |
|
PV 2*4.0 |
56/0.295 |
2.5 |
6.02*12.8 |
5.09 |
|
PV 2*6.0 |
84/0.295 |
3.1 |
7.05*15.5 |
3.39 |
