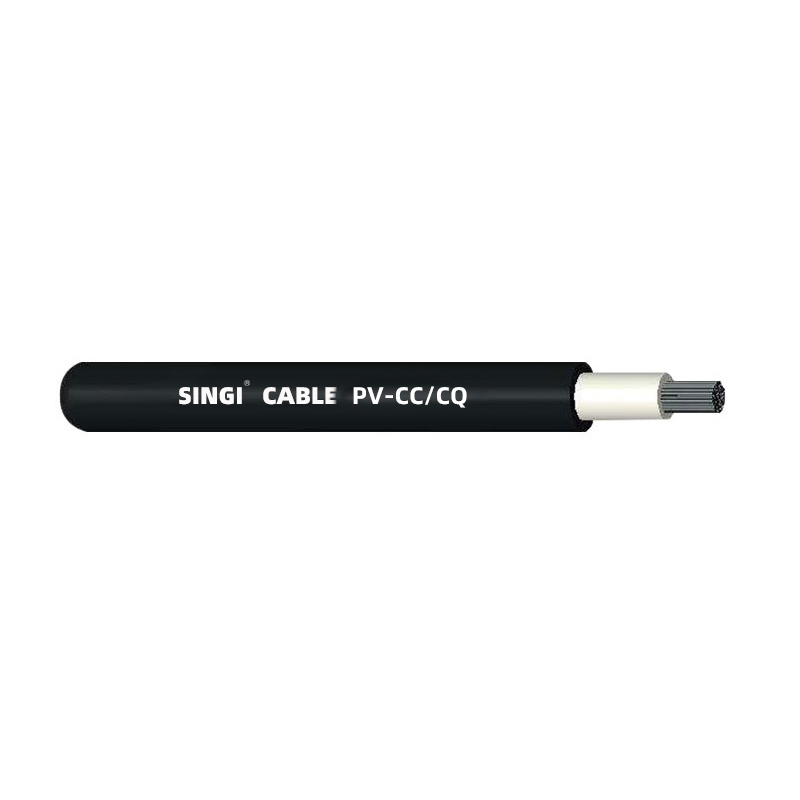

Product Structure |
|
|
Conductor |
Stranded annealed soft copper wire |
|
Insulation & |
125°C irradiated cross-linked low smoke halogen-free polyolefin materials |
|
Core Structure |
Layered structure |
|
Jacket Color |
Black |
|
Service Life |
Not less than 25 years |
|
Application Standards |
JCS 4517-2013 |
|
Technical parameters |
|
|
Rated Voltage |
1500V AC |
|
Ambient Temperature |
-40℃~+90℃ |
|
Flame Retardant |
JIS C 3665-1-2 |
|
Conductor Operating Temperature |
125° C |
|
Minimum Bending Radius |
4*d(d＜8mm）；6*d(d≥8mm） |
|
Application Scenario |
The products are widely used in photovoltaic power plants, junction boxes, connectors, inverters, micro-inverters, convergence boxes, energy storage and other fields. |
|
Characteristic |
Heat-resistant, cold-resistant, abrasion-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant; high mechanical strength, waterproof, oil-resistant, chemical-resistant; soft, easy to peel off, amount of number of adhesive compatibility. By single vertical combustion |
|
Certification |
PSE JET JIS3605 ,RoHS |
|
AWG |
Conductor Construction |
Conductor Stranded OD.(mm) |
Cable OD.（mm²） |
MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
|
PV-CC/CQ 2.0 |
7/0.6 |
1.80 |
5.7 |
9.24 |
|
PV-CC/CQ 3.5 |
7/0.8 |
2.40 |
6.3 |
5.2 |
|
PV-CC/CQ 5.5 |
7/1.0 |
3.00 |
7.1 |
3.33 |
|
PV-CC/CQ 8 |
7/1.2 |
3.60 |
7.8 |
2.31 |
