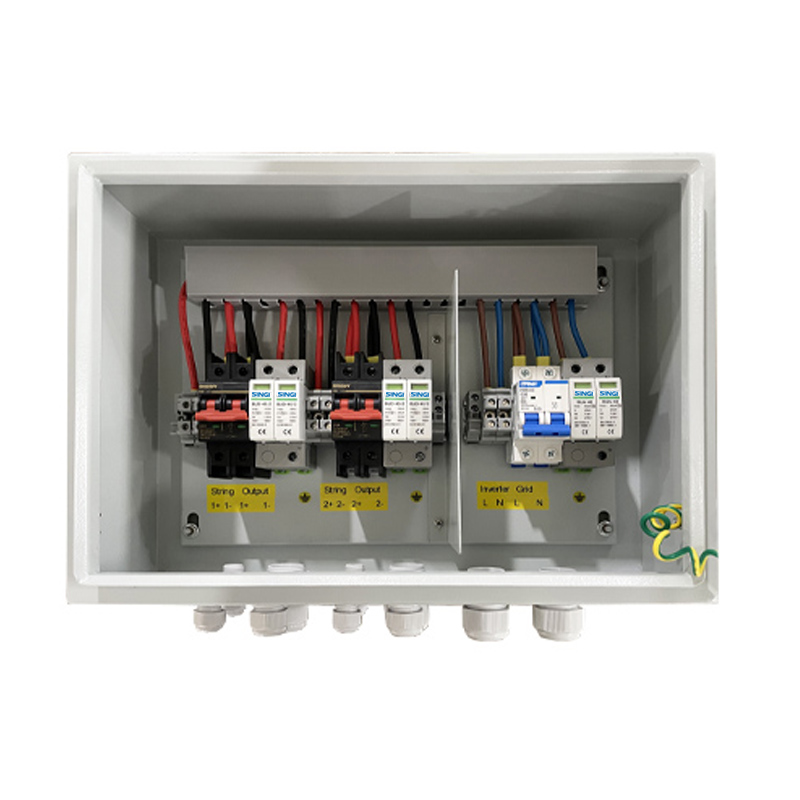

IP65 DC + AC box includes the DC and AC protection for solar PV system.
Over-voltage and over-load protection for solar DC side.
AC breaker and AC surge arrester at AC side.
An isolating plastic plate between DC components and AC components ensure safety operating.
| Specification |
| Model Number |
YB4-2/2 |
| Input |
2 string |
| Output |
2 string |
| Max Voltage |
600V |
1000V |
| Rated Current of DC Breaker |
15A |
15A |
| Max Current Output |
63A |
40A |
| AC Breaker |
220V 20A-63A |
| AC SPD |
275V AC |
|
| Enclosure |
| Material |
Power Coating Metal |
| Degree of Protection |
IP65 |
| Impacts |
IK10 |
| Dimensions (W*H*D) |
400*300*150 |
| Input Cable Glands |
PG09, 2.5-16 |
| Output Cable Gland |
PG21, 2.5-16 |
|
| Environment |
| Operating temperature |
-25℃ – +60℃ |
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in SINGI, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
