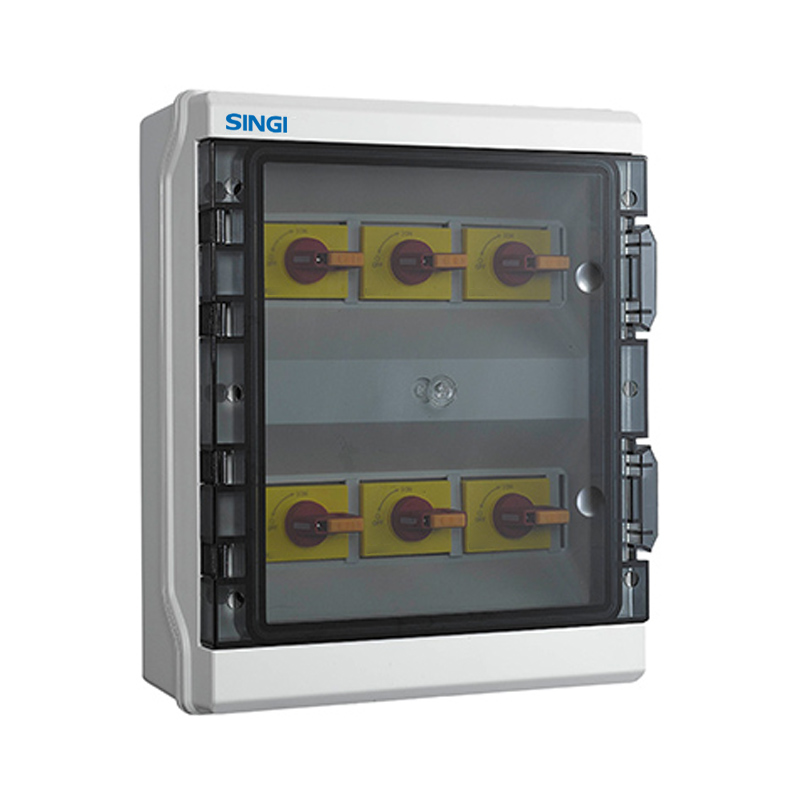

The isolator box is most used in six strings solar commercial system.
Anti-UV and fire resistance PC enclosure protects the DC components from sunlight and water entry, the box cover is lockable.

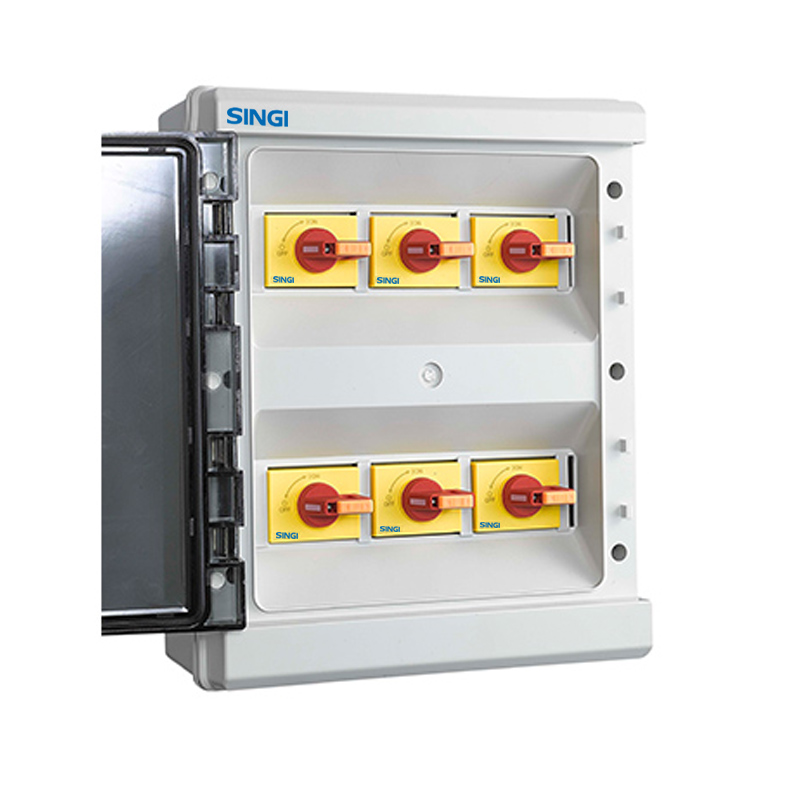

Inside the box including six din rail mounting DC switches up to 40A according to IEC 60947.3 and AS60947.3 PV2, lockable handle for safe using and maintaining.
| Model |
BHS-6 |
| Poles |
2P 4P |
| Standard |
IEC60947.3,AS60947.3:2018 |
| Utilization Category |
DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) |
600V,800V,1000V,1200V |
| Certificate |
CE |
| Rated Current |
9A-40A |
| Mechanical Cycle |
15000 |
| Electrical Cycle |
1000 |
| Protection Degree |
IP65 enclosure/IP20 switch body |
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in SINGI, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
