-Installed between solar panels and solar inverter. -Protections including over-voltage, over-load for longer the solar system working life. -Equipped with the most reliable DC components bring maximum protection.

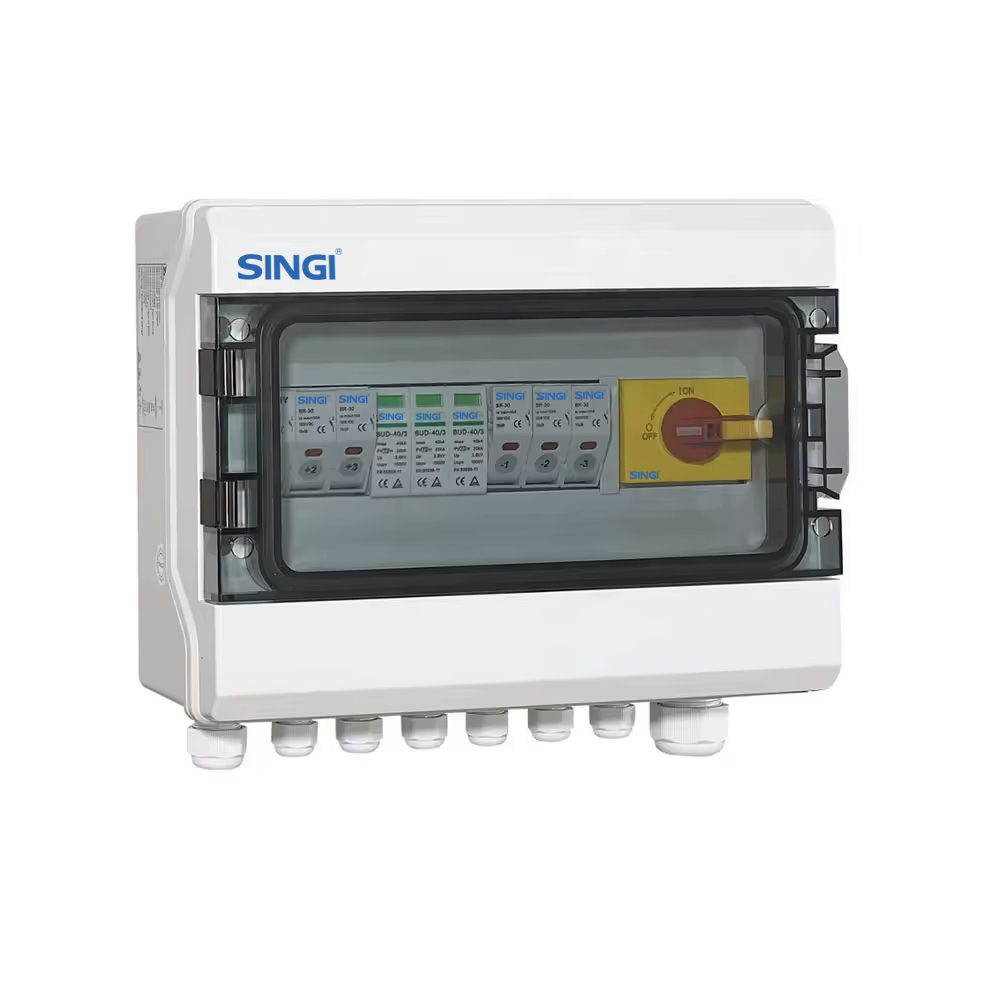

SINGI Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
SINGI Electric with 20+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects. *5 Years warranty *600V/1000V/1500V *AFCI Combiner Box *IP65 Waterproof Enclosure *Build-in UL98B listed DC switchgears *From 1 to 24 strings customized solutions *Design and customized at IEC 62109-1 with CE, and TUV certificates. *Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data
Model No.
YB2-1
Input
2 strings
Output
1 string
Maximum Voltage
1000V
Max DC Short Circuit Current Per Input（Isc）
15A（Changeable）
Maximum Current Output
32A
Enclosure
GNB-F01
Material Type
Polycarbonate/ABS
Degree of Protection
IP65
Degree of Resistance to Impacts
IK10
Dimension（W*H*D）
292*220*120mm
Cable input Entry
PG09 Cable Gland,2.5-16mm²
Output Cable Gland
PG21 2.5-16mm²
DC Switch Disconnector
Rated Insulation Voltage （Ui）
1000V
Rated Current（Le）
32A
Certification
CE
DC Surge Arrester
SWS1-40
Max Operation Voltage（Ucpv）
1000V
Maximum Discharge Current
40KA
Certification
CE
DC Fuse Holder
SWR-30
Rated WorKing Voltage
1000V
Fuse Link
10*38mm Littel 15A
Certification
CB,CE
CUSTOMIZATION OPTIONS
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in SINGI, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
Factory Show
SINGI with 24 years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.We also produce MCB,MCCB,Distritbuion box,junction box and other electrical products.
With over 10 production lines, we produce over 200w annually and receive out orders at any volume. We also carry out quality testing that determines the durability of our combiner boxes under extreme conditions. Talk with us today for fast development and negotiable prices.
WE PROVIDE COMPREHENSIVE & PROFESSIONAL SERVICE
Consulting & Designing
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
SINGI custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why SINGI is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
