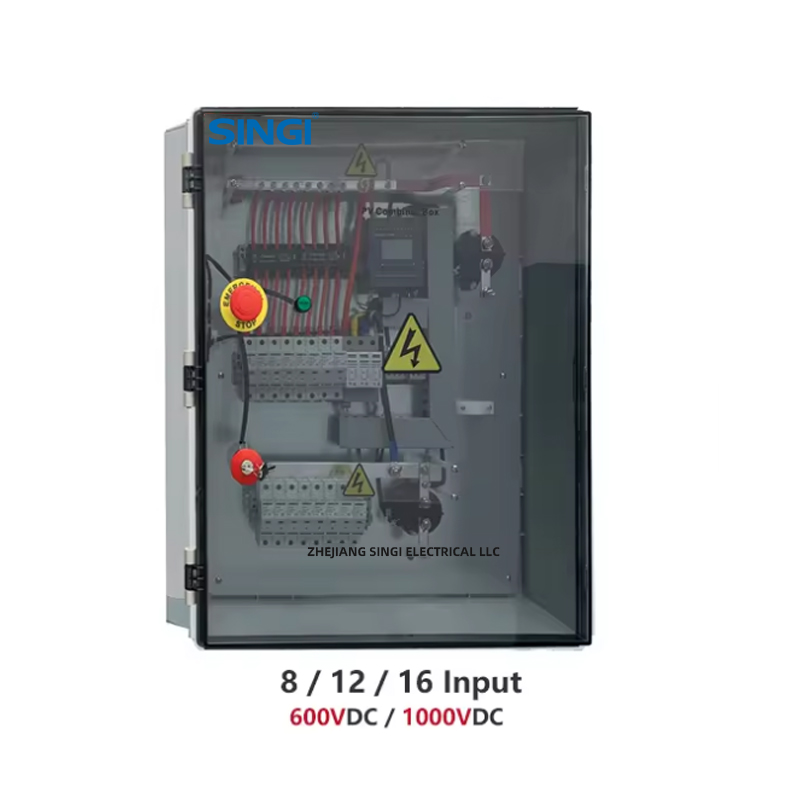

YBZ2-3 1000V Arc Fault Circuit Interruption Combiner Box for Solar PV -Intelligent AutomationRemotely control switch turning on and off -Real-time Detection of PV System Detect your PV System such as electric current, voltage, the temperature level of combiner box ,
lightning arrester ,DC vacuum contactor and DC arc fault. -Communication Function Detects harmful arcing in DC circuits
SINGI Electric Solar Combiner Box 1 Strings to 36 Strings 600V/1000V/1500V/AFCI/Monitoring Option SINGI Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects. *5 Years warranty *600V/1000V/1500V *AFCI Combiner Box *IP65 Waterproof Enclosure *From 1 to 24 strings customized solutions *Design and customized at IEC 62109-1 with CE, and TUV certificates. *Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product name
SINGI AFCI Dc Combiner Box
Model No.
YB2-3
Max Input Current Per Each String
10A/15A/20A/25A/30A
Rated Voltage
1000V
Input Cable Size
Φ4-8mm
Input
16/8
output
1
DC Surge Arrest
T2/T1+2,In=20KA,Imax=40KA,Ucpv=600VDC
Voltage of Monitoring Device
450VDC~1000VDC
Voltage of Contactor
24VDC
Protection Degree
IP65
Ambient Temperture
-20℃~+60℃
Humidity
0-99％
Altitude
≤2000M（derating＞2000M）
Installation method
Vertical/Horizontal
Standard
IEC62109/IEC61439(EN62109/EN61439)
CUSTOMIZATION OPTIONS
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in SINGI, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
Factory Show
SINGI with 24 years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.We also produce MCB,MCCB,Distritbuion box,junction box and other electrical products.
With over 10 production lines, we produce over 200w annually and receive out orders at any volume. We also carry out quality testing that determines the durability of our combiner boxes under extreme conditions. Talk with us today for fast development and negotiable prices.
WE PROVIDE COMPREHENSIVE & PROFESSIONAL SERVICE
Consulting & Designing
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
SINGI custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why SINGI is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
