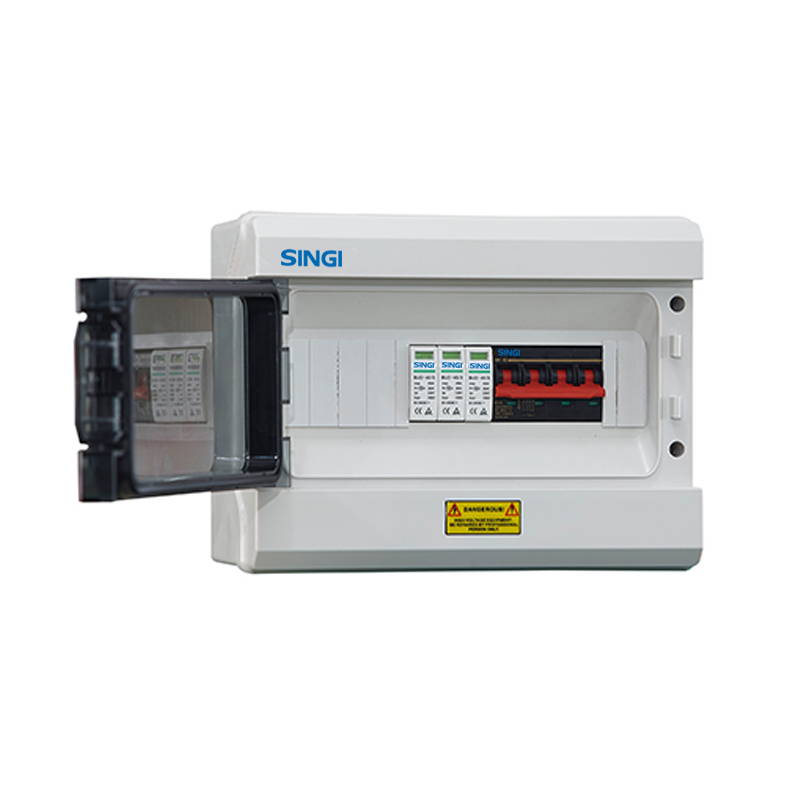

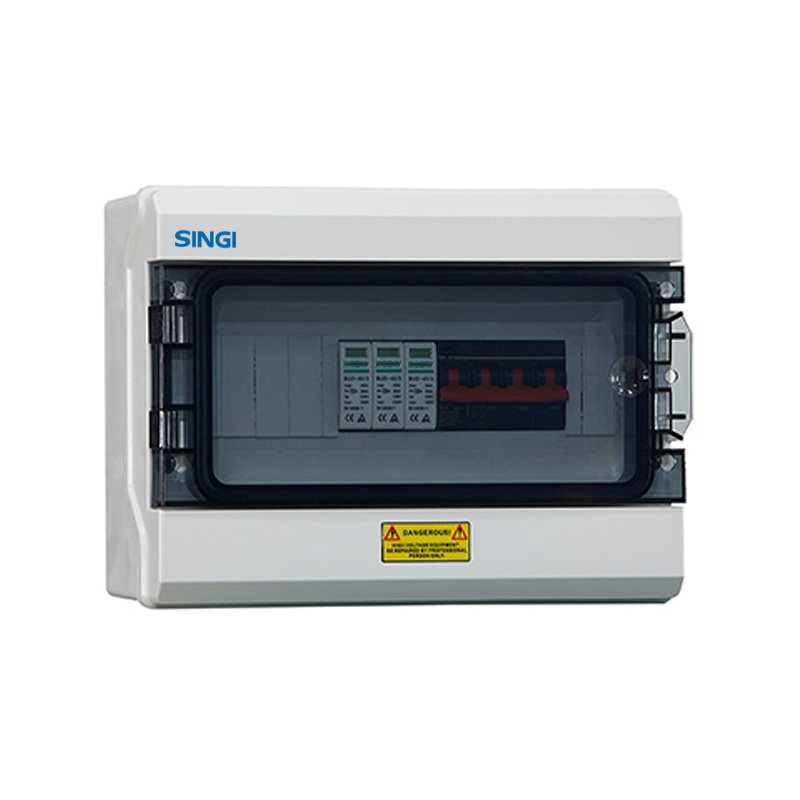

IP65 DC string box is designed for 2 string PV system.
For surge protection and over-load protection at solar DC side.
SPECIFICATION
| Specification |
|
| Model Number |
YB2/2 |
| Input |
2 strings |
| Output |
2 strings |
| Max Voltage |
600V |
1000V |
| Rated Current of DC Breaker |
15A |
15A |
| Max Current Output |
63A |
40A |
|
| Enclosure |
|
| Material |
Polycarbonate/ABS |
| Degree of Protection |
IP65 |
| Impacts |
IK10 |
| Dimensions |
BX-13: L290*W220*H120mm |
| Input Cable Glands |
PG09, 2.5-16 |
| Output Cable Gland |
PG21, 2.5-16 |
|
| Environment |
|
| Operating temperature |
-25℃ – +60℃ |
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in SINGI, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
