Solar string inverters are used more and more in the solar PV plants, requires reliable combiner and protection at AC side.

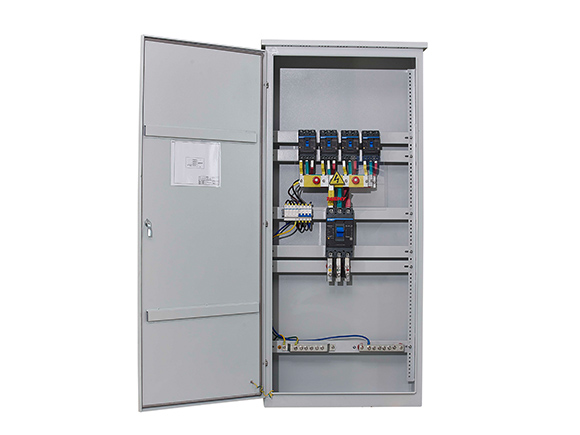

YB5-4 is a solution with AC MCCB build-in for AC inputs and output, type 2 AC SPD for over-voltage protection.
Customized solutions are available for different projects requirements.
Model
YB5-4
Grid topology
TN-S (5-conductor system:L1, L2, L3, PE, N)
Rated Voltage (UN)
230V/400V
Rated Insulation Voltage (Ui)
690V
Frequency
50Hz/60Hz
Operating Temperature
-25 °C up to +60 °C
Enclosure
Up to IP65 (IEC 60529) / IK 10 (IEC62262)
Material
Powder Coating Metal
Dimension
180*80*40cm
AC Input
Number (Inverter)
4 *up to 50KW solar inverters
4 *up to 60KW solar inverters
4 *up to 80KW solar inverters
AC Breaker
4*230V/400V 160A
4*230V/400V 200A
4*230V/400V 250A
Rated Current per Input (Inc)
Up to 160A
Up to 200A
Up to 250A
Connection
Via V-clamp (for Al and Cu cables)
AC Output
Number
1 per phase (Optionally 2)
AC Breaker
1*230V/400V 630A
1*230V/400V 800A
1*230V/400V 1000A
Rated Current Output(InA)
630A
800A
1000A
Connection
Via V-clamp (for Al and Cu cables)
Surge Protection Device
Type
Type 2 275VAC 4P
